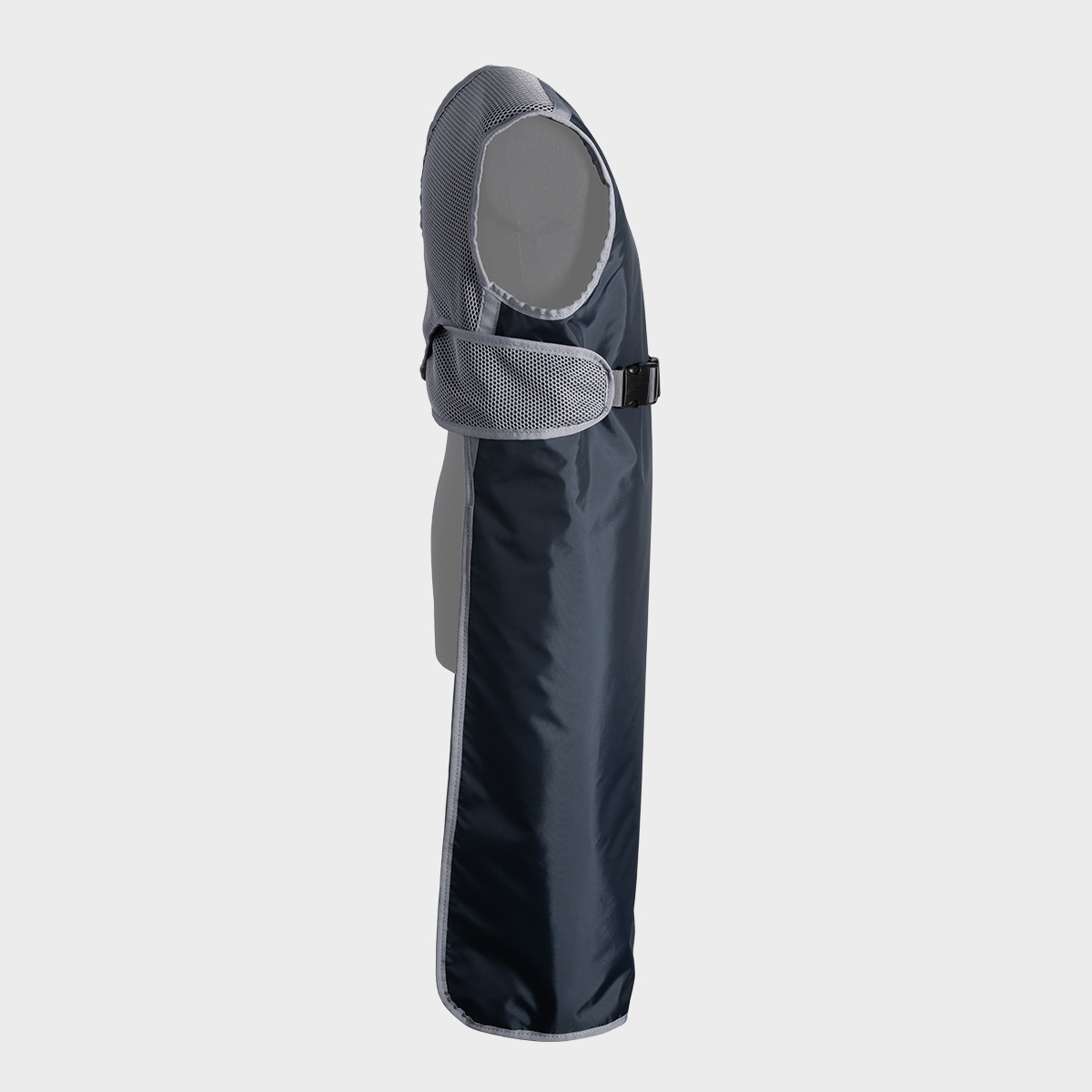

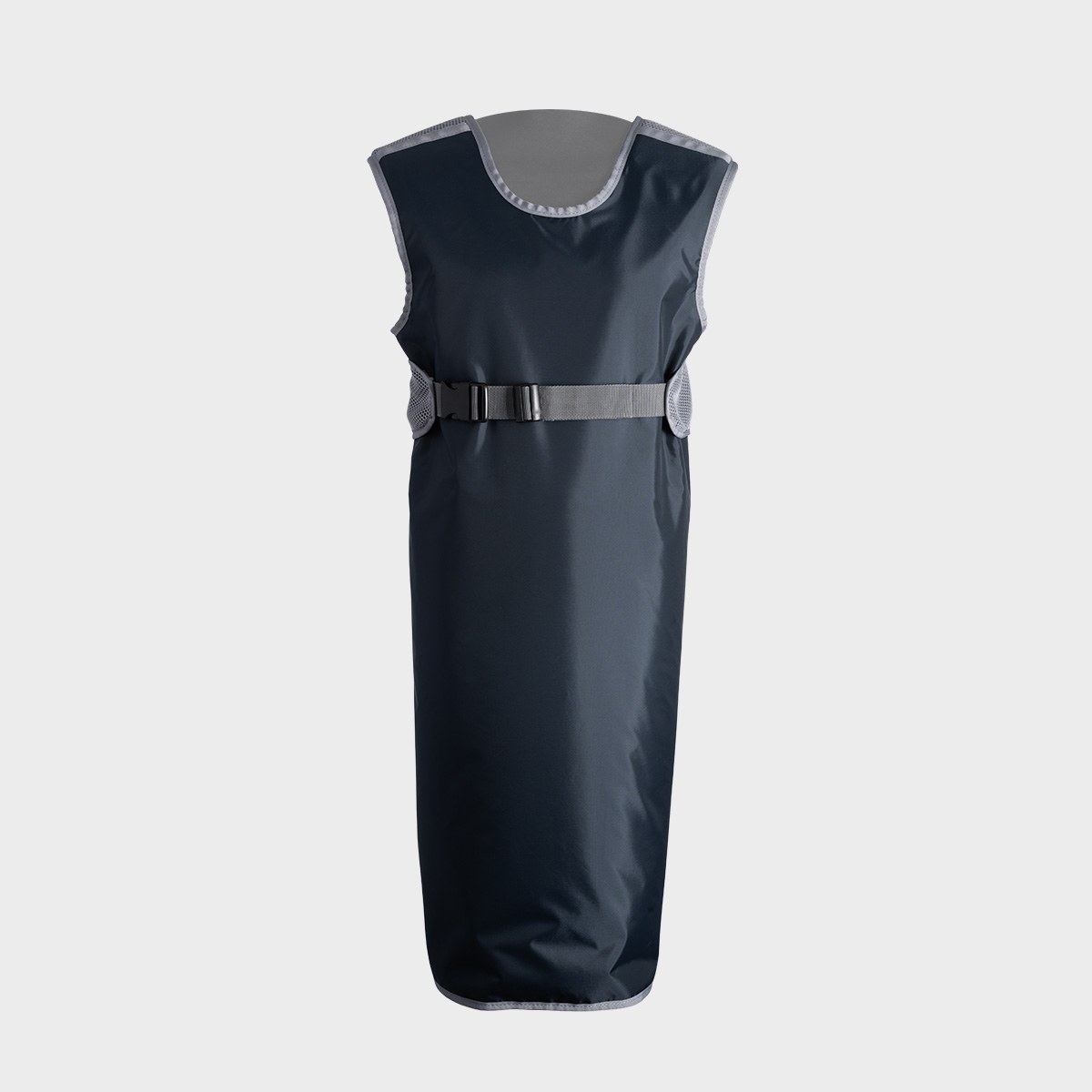

X-ray protective Apron

Lightweight front protection for applications with radiation exposure from the front.

Snap buckle fastener at the front for easy fastening

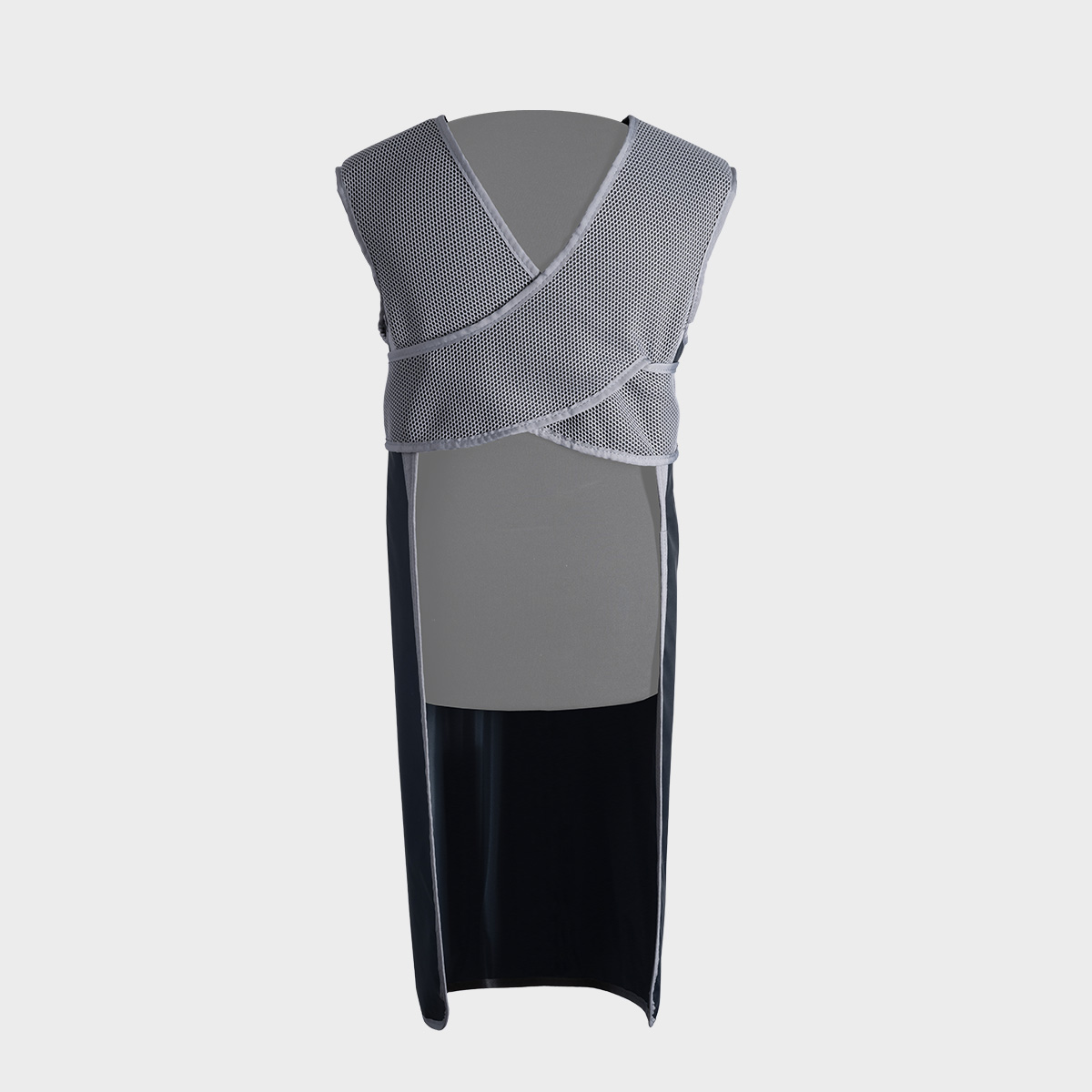

Breathable mesh in the back wings
Shoulder pads as standard
Type examination and certification according to (EU) 2016/425, (EU) 2017/745, IEC 61331-1:2014 / DIN EN 61331-1:2016 and IEC 61331-3:2014 / DIN EN 61331-3:2016

Protective material options

MPure – Light lead (50 – 150kV)
MFree – Lead free (50 – 110kV)

Sizing according to standard

This model is available in five sizes from XS to XL and in four coat lengths ranging from 90 cm to 120 cm. A detailed size chart can be found below.

Options

Sewn-on shoulder border
(with one-text-line embroidery)

Breast pocket embroidery
(with logo only)

Inky Blue

New Red

Green 17

Modern Grey

Our MTex colours:

The “M by MAVIG” outer material is designed for durability and easy maintenance, featuring a robust, easy-to-clean nylon fabric. With a special PU coating, it ensures reliability while meeting the OEKOTEX 100 standard for safety and sustainability.

Sizes

The person’s height, as well as either circumference of the chest, waist or hip, depending on which of the three dimensions is the greatest, is used for this purpose.

Sizes	XS	S	M	L	XL
Breast	≤ 84 cm	85 - 95 cm	96 - 106 cm	107 - 117 cm	118 - 128 cm
Waist/hip	≤ 91 cm	92 - 102 cm	103 - 112 cm	113 - 123 cm	124 - 134 cm

Lengths	90 cm	100 cm	110 cm	120 cm
for a body height of:	150 - 160 cm	160 - 170 cm	170 - 180 cm	175 - 190 cm

Lead Equivalent

We provide both leaded and lead-free materials, ensuring optimal radiation protection for applications ranging from 50 to 150kV.

Front panel options:	0.25 mm Pb	0.35 mm Pb	0.50 mm Pb
Generally in the back:	0.25 mm Pb

Downloads

Declaration of Conformity for Front Protection Apron RA460

(PDF-Download)
