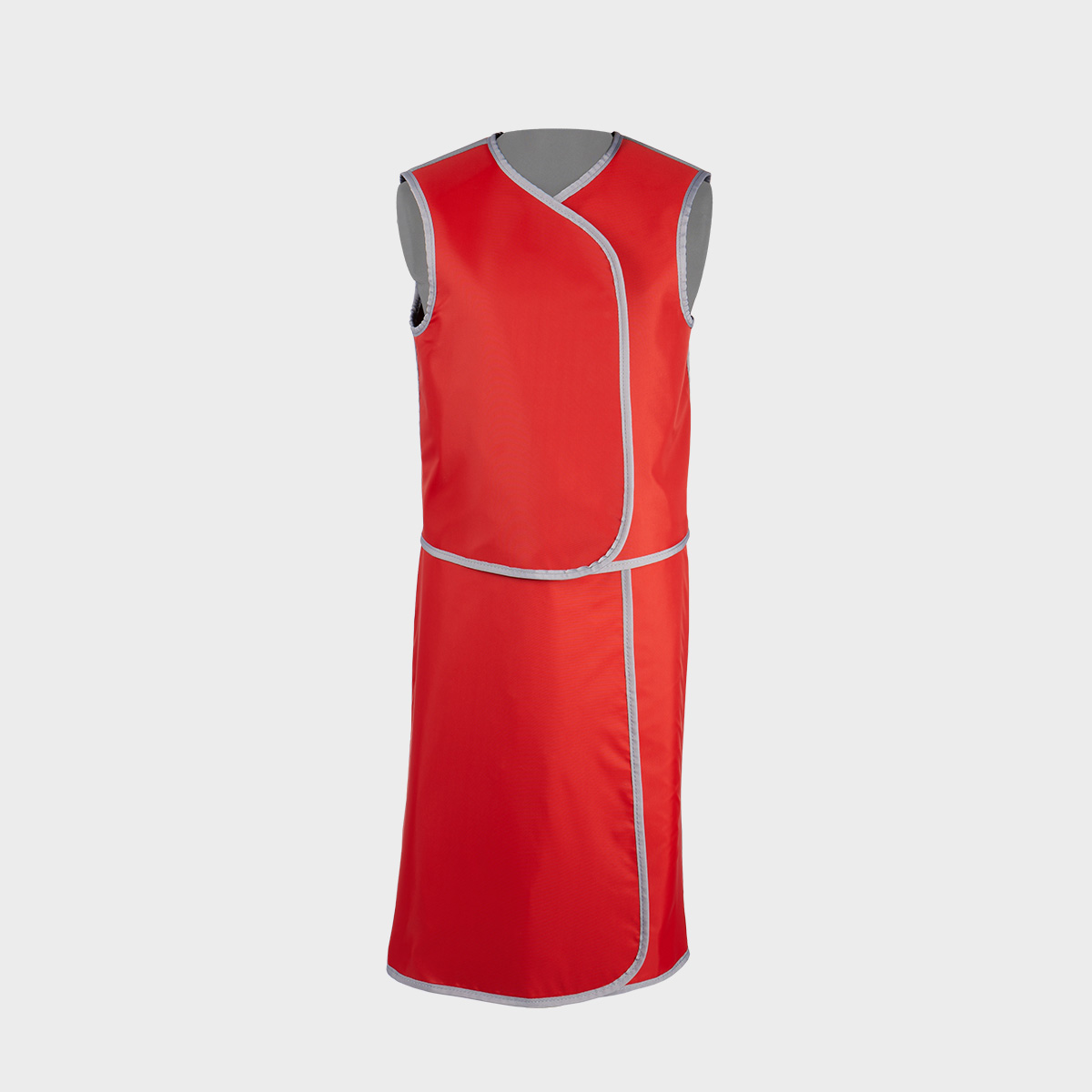

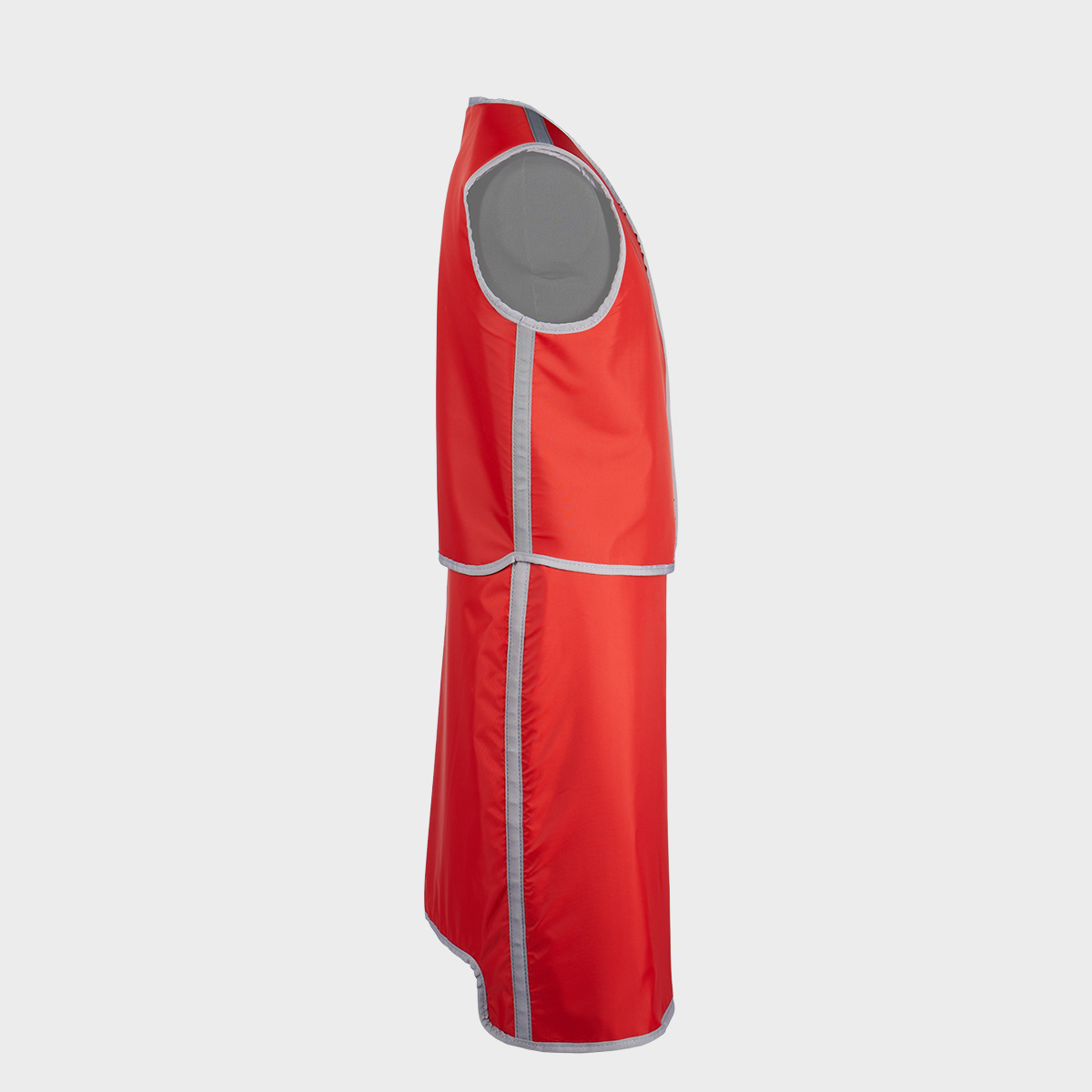

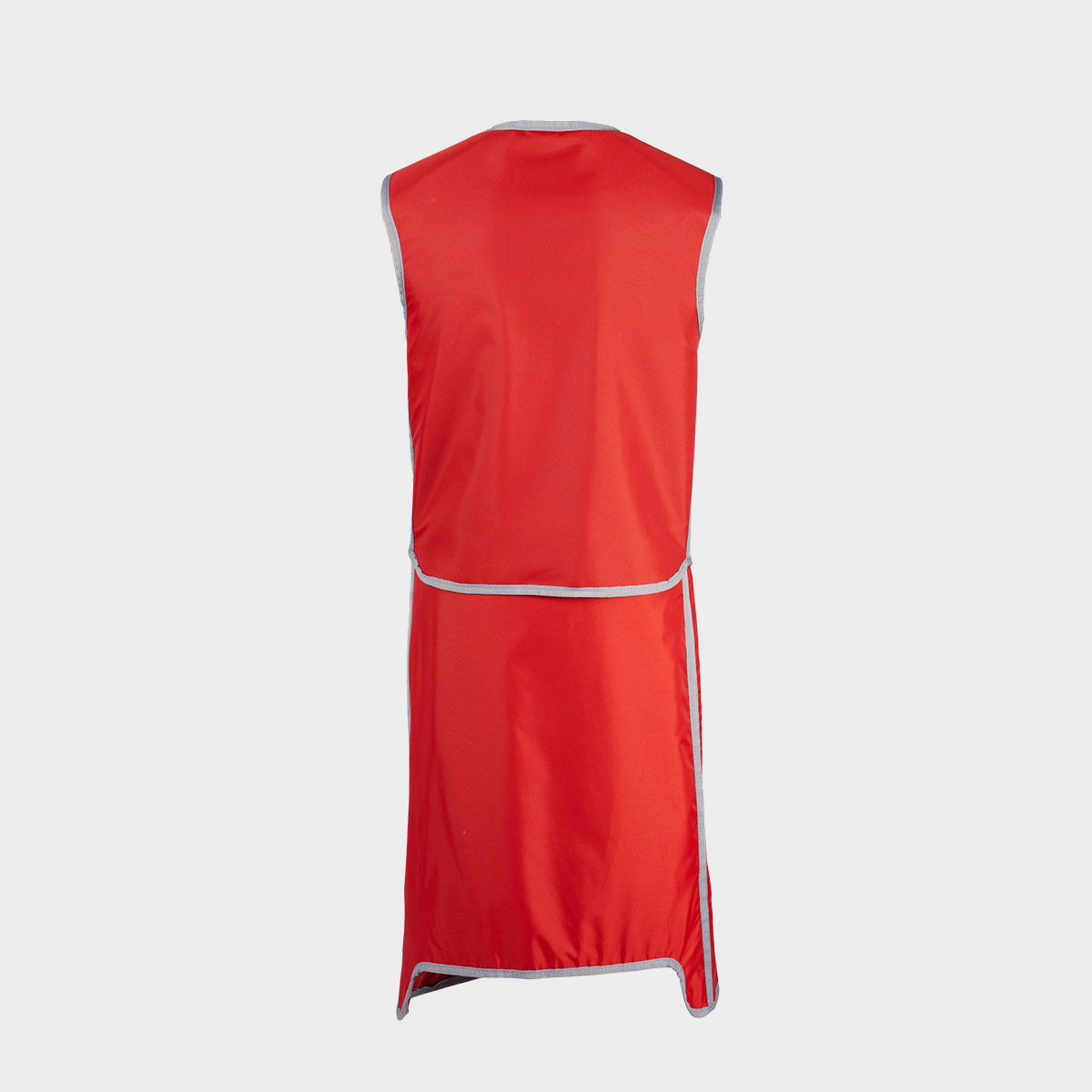

Two-piece set: vest & skirt

All-round X-ray protection with ergonomic comfort thanks to the division into vest and skirt.

Full lead equivalent in both front wings, no full-surface overlapping necessary
Cut to fit the body
Especially suitable for long wearing times
Weight relief for the spine
Shoulder pads as standard
Type examination and certification according to (EU) 2016/425, (EU) 2017/745, IEC 61331-1:2014 / DIN EN 61331-1:2016 and IEC 61331-3:2014 / DIN EN 61331-3:2016

Protective material options

MPure – Light lead (50 – 150kV)
MFree – Lead free (50 – 110kV)

Sizing according to standard

This model is available in five sizes from XS to XL and in three skirt lengths ranging from 65 cm to 75 cm. A detailed size chart can be found below.

Options

Additional stretch belt (skirt)

Sewn-on shoulder border
(with one-text-line embroidery)

Breast pocket embroidery
(with logo only)

Inky Blue

New Red

Green 17

Modern Grey

Our MTex colours:

The “M by MAVIG” outer material is designed for durability and easy maintenance, featuring a robust, easy-to-clean nylon fabric. With a special PU coating, it ensures reliability while meeting the OEKOTEX 100 standard for safety and sustainability.

Sizes

The person’s height, as well as either circumference of the chest, waist or hip, depending on which of the three dimensions is the greatest, is used for this purpose.

Sizes	XS	S	M	L	XL
Breast (for vest)	≤ 84 cm	85 - 95 cm	96 - 106 cm	107 - 117 cm	118 - 128 cm
Waist/hip (for skirt)	≤ 86 cm	87 - 97 cm	98 - 107 cm	108 - 118 cm	119 - 129 cm

Lengths (skirt)	65 cm	70 cm	75 cm
for a body height of:	150 - 170 cm	170 - 180 cm	180 - 190 cm

Lead Equivalent

We provide both leaded and lead-free materials, ensuring optimal radiation protection for applications ranging from 50 to 150kV.

Front panel options:	0.25 mm Pb	0.35 mm Pb	0.50 mm Pb
Generally in the back:	0.25 mm Pb

Downloads

Declaration of Conformity for All-round Protection RA431

(PDF-Download)
